설명
| Switching capacity | 1168 Gbit/s |
|---|---|
| Packet forwarding rate | 867 Mpps |
| GE RJ45 | 24 (1G/100M/10M) |
| 10G SFP+ | 16 (10G/2.5G/1G/100M) |
| 25G SFP28 | 8 (25G/10G/2.5G/1G) |
| 100G QSFP28 | 2 (100G/40G) |
| iStack | Up to 9 switches of the same series in a stack |
| Number of card slots | 1 |
| Number of power slots | 2 |
| Certification | EMC certification · Safety certification · Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 77 |
| Dimensions without packaging (H × W × D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm × 442.0 mm × 420.0 mm (1.72 in. × 17.40 in. × 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm × 442.0 mm × 454.0 mm (1.72 in. × 17.4 in. × 17.87 in.) |
| Dimensions with packaging (H × W × D) [mm(in.)] | 145.0 mm × 650.0 mm × 550.0 mm (5.71 in. × 25.59 in. × 21.65 in.) |
| Installation type | Rack mounting, Desk mounting |
| Weight without packaging [kg(lb)] | 6.31 kg (13.91 lb) |
| Weight with packaging [kg(lb)] | 8.76 kg (19.31 lb) |
| Typical power consumption [W] | 30% traffic under the ATIS standard and dual power modules: – 122 W (with two 180 W AC power modules) – 118 W (with two 240 W DC power modules) |
| Maximum power consumption [W] | 100% traffic under the ATIS standard and dual power modules: – 127 W (with two 180 W AC power modules) – 123 W (with two 240 W DC power modules) |
| Number of fans modules | 2 |
| Redundant power supply | 1+1. Pluggable AC and DC power modules can be used together on the same device. Note: Power modules with fans and power modules without fans cannot be installed on the same device. |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: −38.4 V DC to −72 V DC |
| Power supply surge protection [kV] | Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
| Types of fans | Pluggable |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from front and right and air exhaust from rear |
연관 상품
-

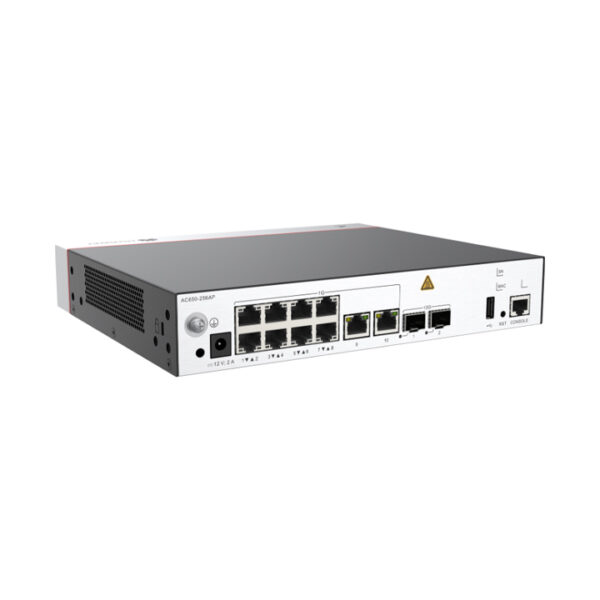

AC650-256AP
